Flow Over Cylinder#

The simulation of a high Reynolds flow around a circular cylinder is used as validation for the HRRBGK collision operator implementation, the case is the same used in Jacob et al., 2018. The dynamic implementation of the tuning parameter is expected to provide more accurate results of velocity profiles for the HRRBGK in comparison to RRBGK.

from nassu.cfg.model import ConfigScheme

filename = "tests/validation/cases/09_flow_over_cylinder.nassu.yaml"

sim_cfgs = ConfigScheme.sim_cfgs_from_file_dct(filename)

The computational domain is periodic at \(y\)-direction, uses free slip BCs in \(z\)-direction, uniform velocity at inlet and Neumann with constant pressure at outlet.

Load experimental values for comparison:

import pandas as pd
import pathlib

comparison_folder = "tests/validation/comparison/Flow_over_cylinder"
files = [
    "ux_avg_upstream",
    "ux_rms_upstream",
    "ux_avg_102D",
    "ux_rms_102D",
    "uz_avg_102D",
    "uz_rms_102D",
    "ux_avg_154D",
    "ux_rms_154D",
    "uz_avg_154D",
    "uz_rms_154D",
    "ux_avg_202D",
    "ux_rms_202D",
    "uz_avg_202D",
    "uz_rms_202D",
]
get_filename_csv = lambda f: pathlib.Path(comparison_folder) / (f + ".csv")


df_vel = {f: pd.read_csv(get_filename_csv(f), delimiter=",") for f in files}

Results#

import numpy as np
import pandas as pd
from nassu.cfg.schemes.simul import SimulationConfigs

u_ref = 0.0585


def add_pos_to_points(df_points: pd.DataFrame, start_pos: float, end_pos: float):
    df_points["pos"] = np.linspace(start_pos, end_pos, num=len(df_points), endpoint=True)


def add_stats_to_points(df_points: pd.DataFrame, df_hs: dict[str, pd.DataFrame]):
    df_data = {k: df.drop(columns=["time_step"]) for k, df in df_hs.items()}
    for u_name in ["ux", "uy", "uz"]:
        df_points[f"{u_name}_avg"] = (df_data[u_name].mean() / u_ref).to_numpy(dtype=np.float32)
        df_points[f"{u_name}_rms"] = ((df_data[u_name].std() ** 2) / (u_ref**2)).to_numpy(
            np.float32
        )


def read_hs(sim_cfg: SimulationConfigs, line_name: str):
    line_ref = sim_cfg.output.series["default"].lines[line_name]
    df_points = pd.read_csv(line_ref.points_filename)
    df_hs = {u: line_ref.read_full_data(u) for u in ["ux", "uy", "uz"]}
    return (line_ref, df_points, df_hs)

Read experimental lines and add data

lines = {
    "upstream": {"start_pos": 0.5, "end_pos": 6.5},
    "line_102": {"start_pos": -1.5, "end_pos": 1.5},
    "line_154": {"start_pos": -1.5, "end_pos": 1.5},
    "line_202": {"start_pos": -1.5, "end_pos": 1.5},
}


def get_lines_from_sim(sim_cfg: SimulationConfigs):
    dct_sim_cfg = {}
    for line_name, dct_line in lines.items():
        hs, df_points, df_hs = read_hs(sim_cfg, line_name)
        # Filter time steps
        df_hs = {u: df[df["time_step"] > 6000] for u, df in df_hs.items()}
        # df_hs = df_hs[df_hs["time_step"] < 10000]

        add_pos_to_points(df_points, dct_line["start_pos"], dct_line["end_pos"])
        add_stats_to_points(df_points, df_hs)
        dct_sim_cfg[line_name] = {"hs": hs, "df_points": df_points}
    return dct_sim_cfg


sim_cfgs_lines = [get_lines_from_sim(sim_cfg) for sim_cfg in sim_cfgs.values()]

Set styles and legends for plots

lg = [f"{s.models.LBM.vel_set} {s.models.LBM.coll_oper}" for s in sim_cfgs.values()]

num_styles = ["-k", "-r", "-b", "-m", "-c"]
exp_style = "ko"

def plot_line_values(ax, line_name: str, vel_name: str, exp_filename: str):
    for i, sim_lines in enumerate(sim_cfgs_lines):
        df_points = sim_lines[line_name]["df_points"]
        ax.plot(df_points["pos"], df_points[vel_name], num_styles[i])
    df_exp = df_vel[exp_filename]
    ax.plot(df_exp.iloc[:, 0], df_exp.iloc[:, 1], exp_style, fillstyle="none")
    ax.legend(lg + ["Exp."])

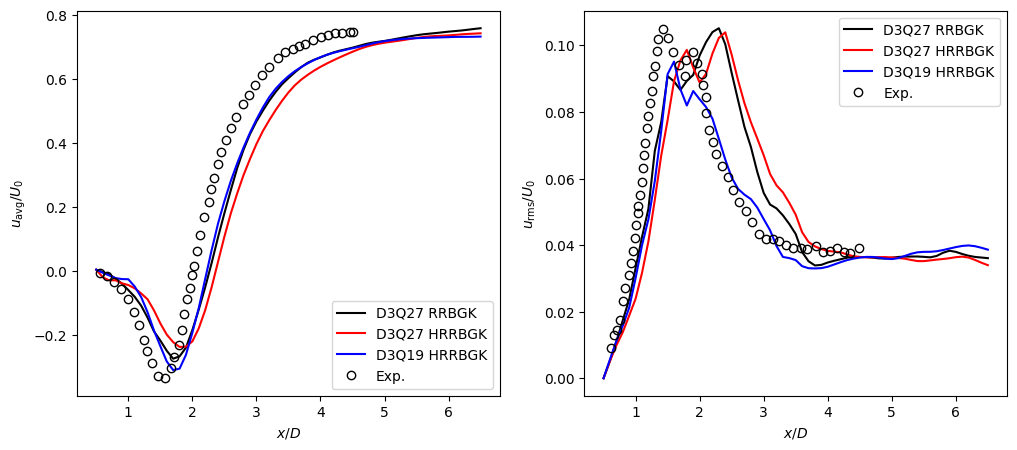

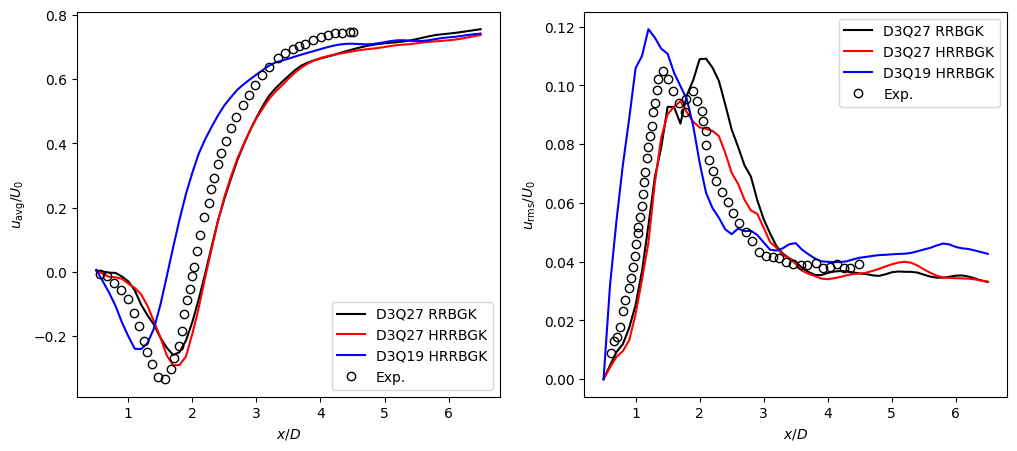

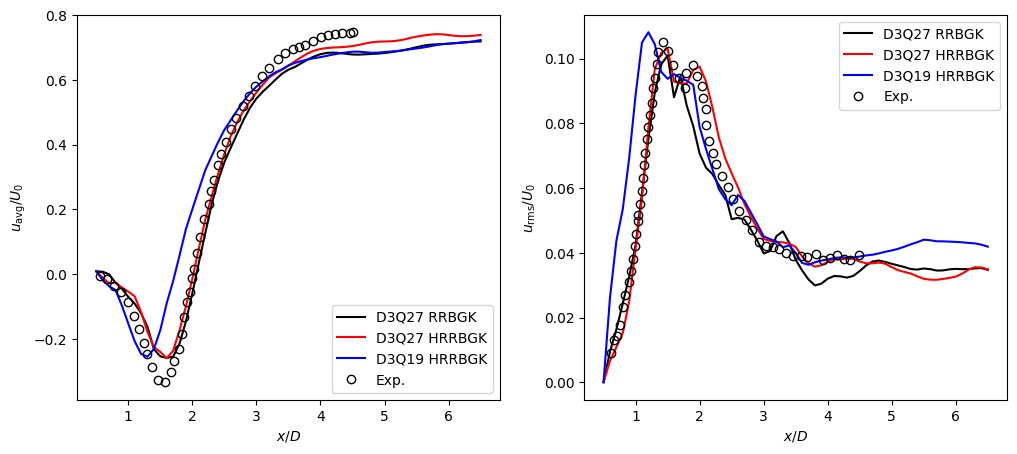

import matplotlib.pyplot as plt

fig, ax = plt.subplots(1, 2)
fig.set_size_inches(12, 5)

plot_line_values(ax[0], "upstream", "ux_avg", "ux_avg_upstream")
ax[0].set_ylabel("$u_{\mathrm{avg}}/U_{0}$")
ax[0].set_xlabel("$x/D$")


plot_line_values(ax[1], "upstream", "ux_rms", "ux_rms_upstream")
ax[1].set_ylabel("$u_{\mathrm{rms}}/U_{0}$")
ax[1].set_xlabel("$x/D$")

plt.show(fig)

<>:7: SyntaxWarning: invalid escape sequence '\m'
<>:12: SyntaxWarning: invalid escape sequence '\m'
<>:7: SyntaxWarning: invalid escape sequence '\m'
<>:12: SyntaxWarning: invalid escape sequence '\m'
/tmp/ipykernel_237749/2505338252.py:7: SyntaxWarning: invalid escape sequence '\m'
  ax[0].set_ylabel("$u_{\mathrm{avg}}/U_{0}$")
/tmp/ipykernel_237749/2505338252.py:12: SyntaxWarning: invalid escape sequence '\m'
  ax[1].set_ylabel("$u_{\mathrm{rms}}/U_{0}$")

../../../_images/09694e717a7881c418517db08d52ad5c7e914d3b07905f0284000049a106660f.png

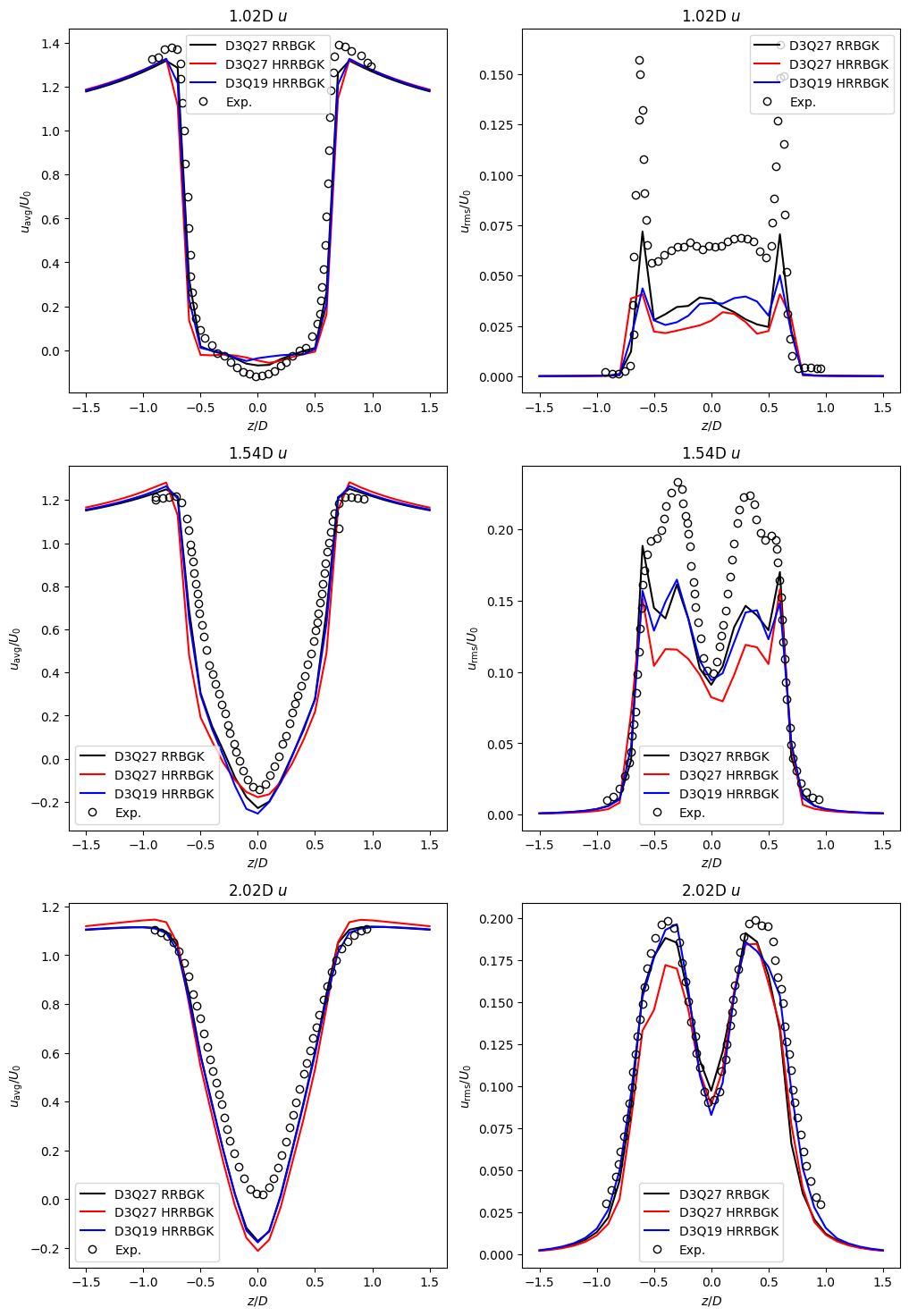

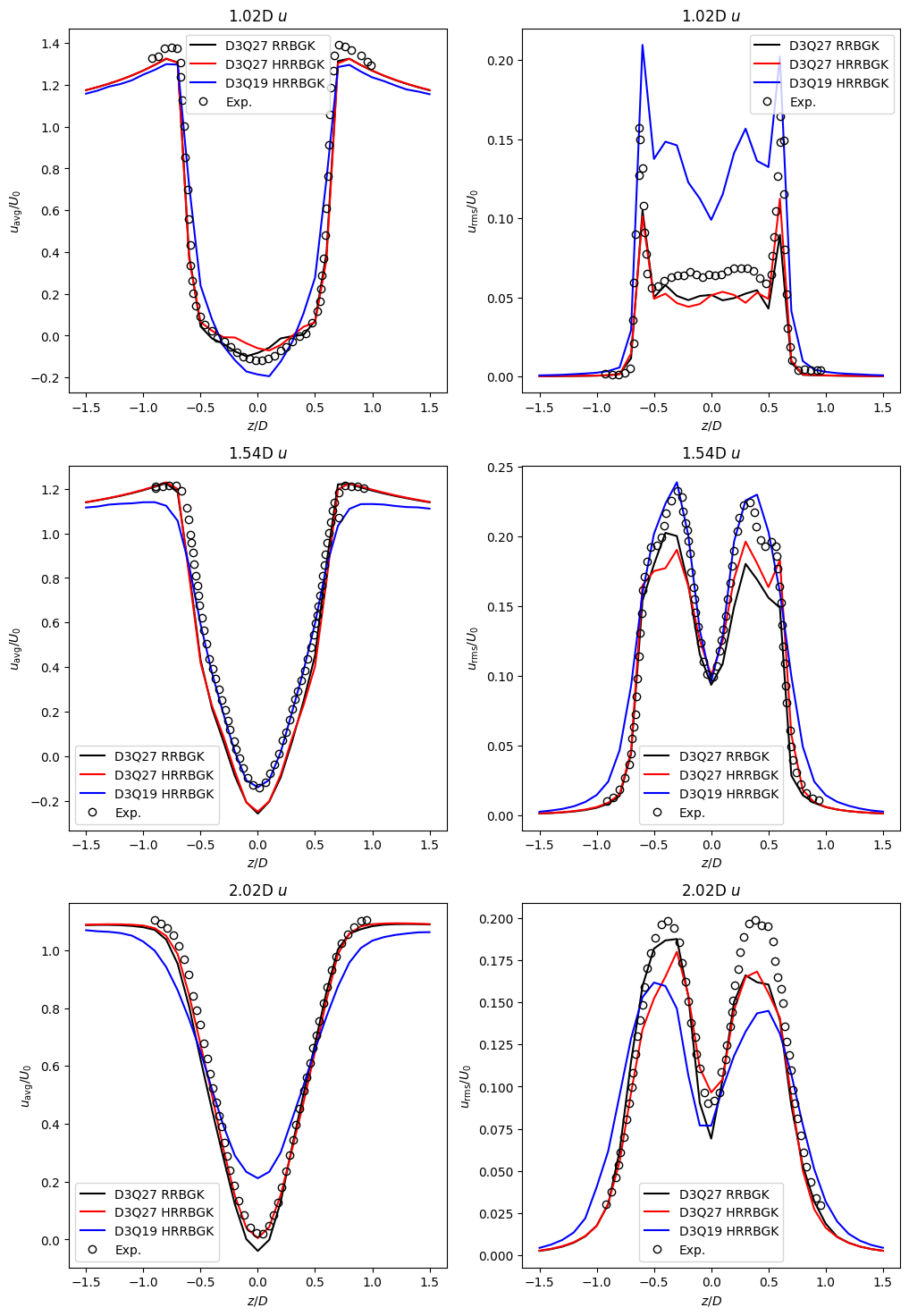

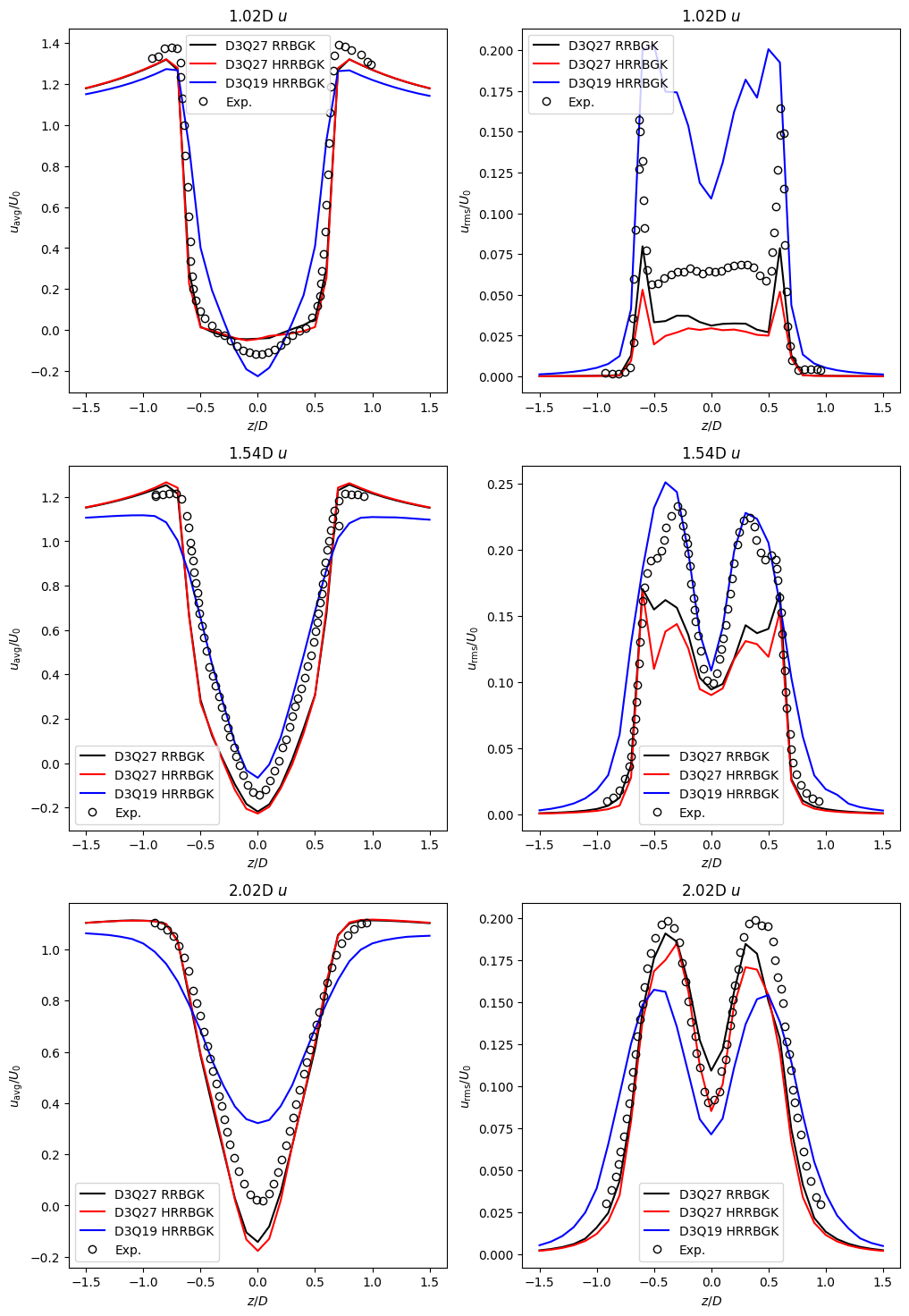

fig, ax = plt.subplots(3, 2)
fig.set_size_inches(12, 18)

for i, dist in enumerate([102, 154, 202]):
    plot_line_values(ax[i][0], f"line_{dist}", "ux_avg", f"ux_avg_{dist}D")
    ax[i][0].set_ylabel("$u_{\mathrm{avg}}/U_{0}$")
    ax[i][0].set_xlabel("$z/D$")
    ax[i][0].set_title(f"{dist/100:.2f}D $u$")

    plot_line_values(ax[i][1], f"line_{dist}", "ux_rms", f"ux_rms_{dist}D")
    ax[i][1].set_ylabel("$u_{\mathrm{rms}}/U_{0}$")
    ax[i][1].set_xlabel("$z/D$")
    ax[i][1].set_title(f"{dist/100:.2f}D $u$")

plt.show(fig)

<>:6: SyntaxWarning: invalid escape sequence '\m'
<>:11: SyntaxWarning: invalid escape sequence '\m'
<>:6: SyntaxWarning: invalid escape sequence '\m'
<>:11: SyntaxWarning: invalid escape sequence '\m'
/tmp/ipykernel_237749/1640998346.py:6: SyntaxWarning: invalid escape sequence '\m'
  ax[i][0].set_ylabel("$u_{\mathrm{avg}}/U_{0}$")
/tmp/ipykernel_237749/1640998346.py:11: SyntaxWarning: invalid escape sequence '\m'
  ax[i][1].set_ylabel("$u_{\mathrm{rms}}/U_{0}$")

../../../_images/9855e8b81aa3df52da9096d5d66eb5f76387d47515b12f74dd9beb754aa66b6d.png

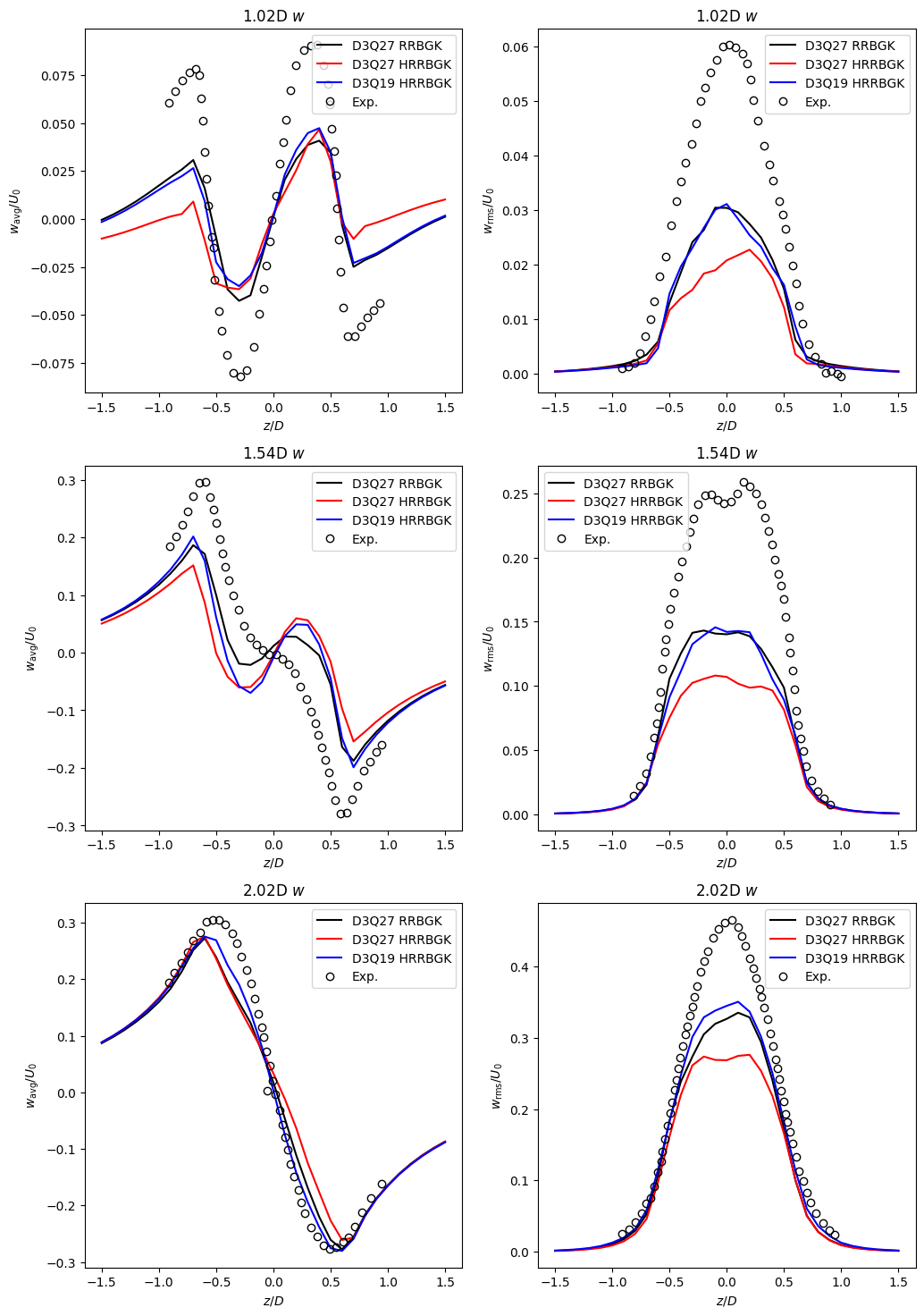

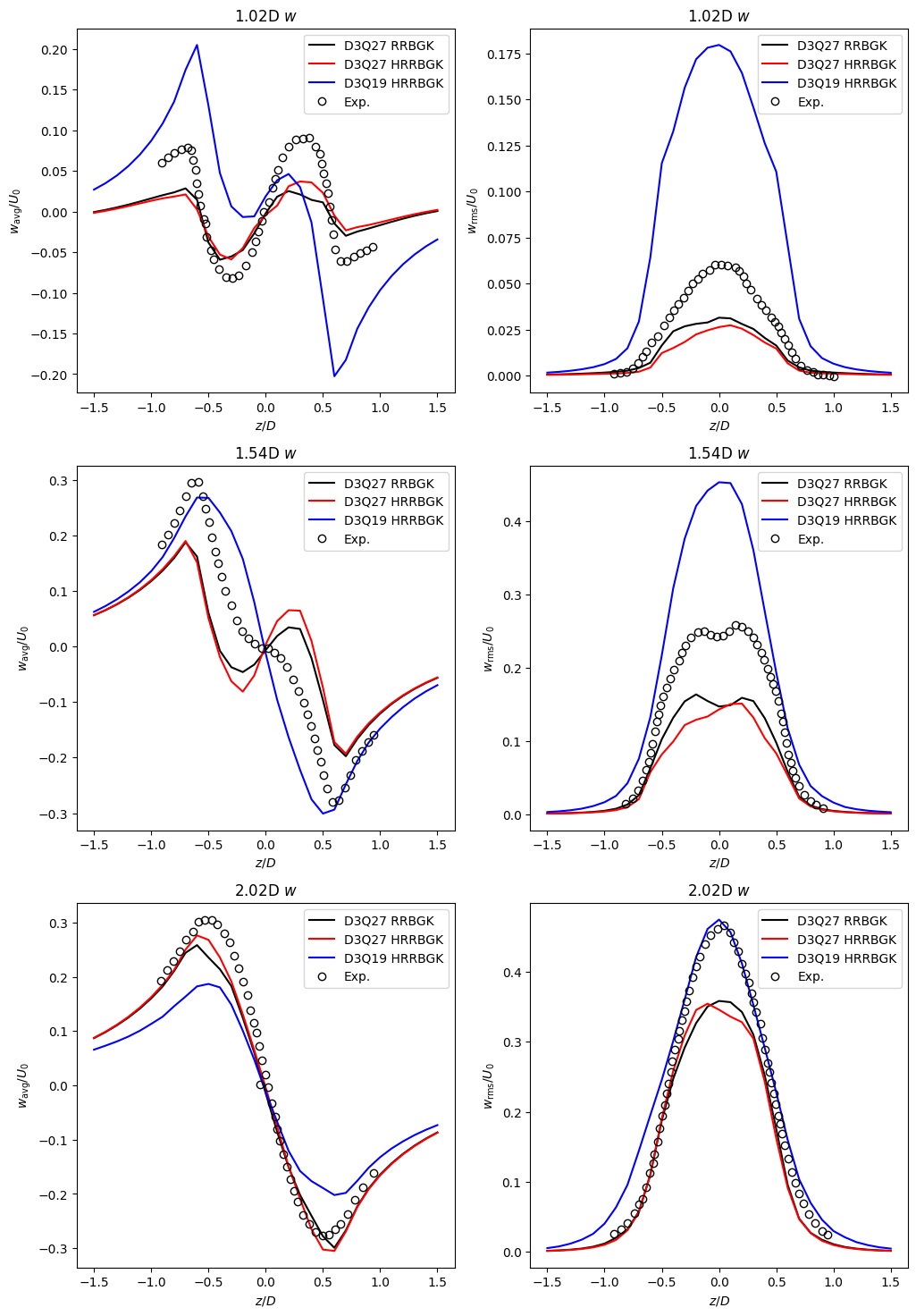

fig, ax = plt.subplots(3, 2)
fig.set_size_inches(12, 18)

for i, dist in enumerate([102, 154, 202]):
    plot_line_values(ax[i][0], f"line_{dist}", "uz_avg", f"uz_avg_{dist}D")

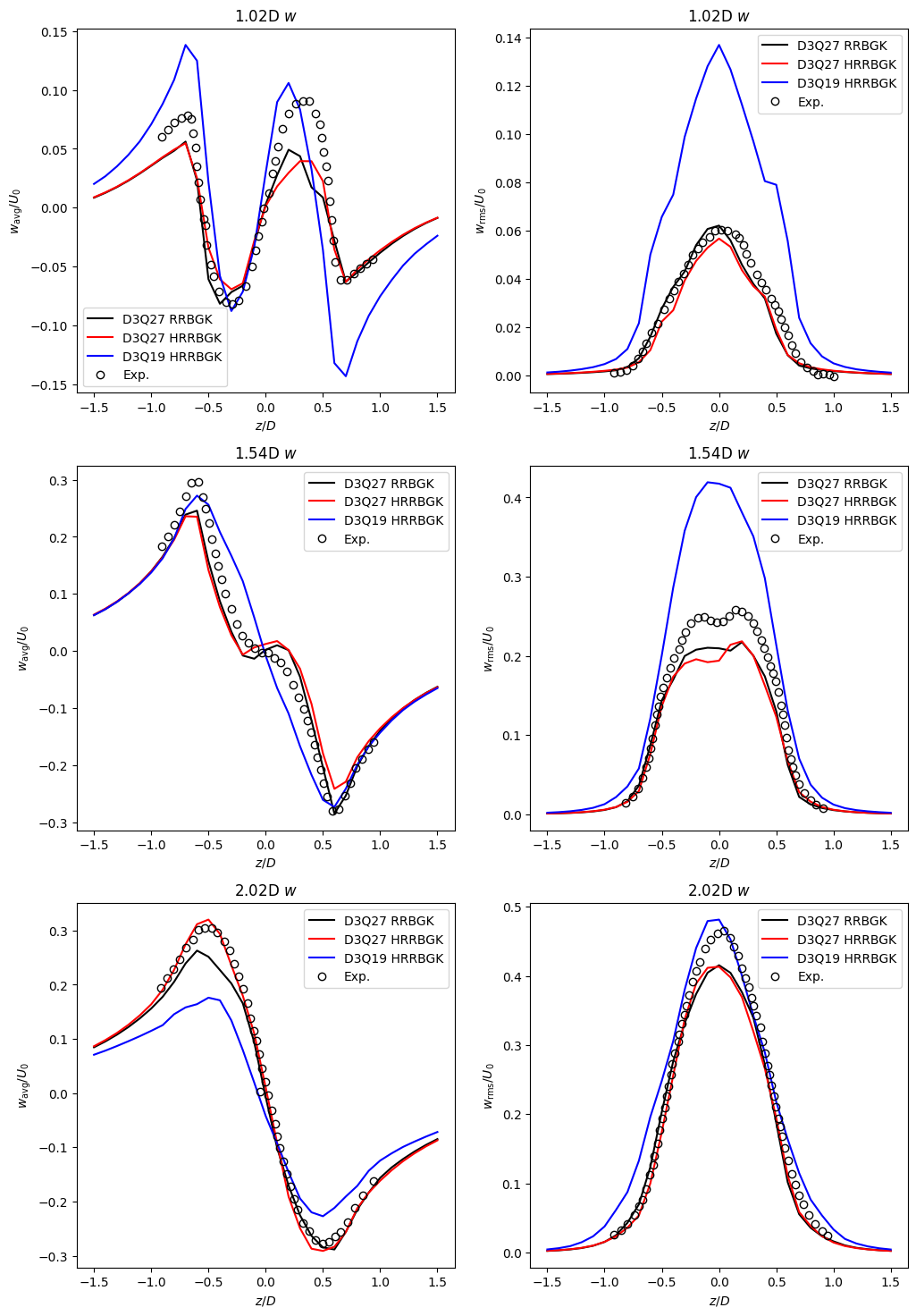

    ax[i][0].set_ylabel("$w_{\mathrm{avg}}/U_{0}$")
    ax[i][0].set_xlabel("$z/D$")
    ax[i][0].set_title(f"{dist/100:.2f}D $w$")

    plot_line_values(ax[i][1], f"line_{dist}", "uz_rms", f"uz_rms_{dist}D")
    ax[i][1].set_ylabel("$w_{\mathrm{rms}}/U_{0}$")
    ax[i][1].set_xlabel("$z/D$")
    ax[i][1].set_title(f"{dist/100:.2f}D $w$")

plt.show(fig)

<>:6: SyntaxWarning: invalid escape sequence '\m'
<>:11: SyntaxWarning: invalid escape sequence '\m'
<>:6: SyntaxWarning: invalid escape sequence '\m'
<>:11: SyntaxWarning: invalid escape sequence '\m'
/tmp/ipykernel_237749/2607555572.py:6: SyntaxWarning: invalid escape sequence '\m'
  ax[i][0].set_ylabel("$w_{\mathrm{avg}}/U_{0}$")
/tmp/ipykernel_237749/2607555572.py:11: SyntaxWarning: invalid escape sequence '\m'
  ax[i][1].set_ylabel("$w_{\mathrm{rms}}/U_{0}$")

../../../_images/41ada9865be6f7f3b5ad6b84910bca937b9e790571b49a23401e5a284ac3c0de.png

Version#

sim_cfg = next(iter(sim_cfgs.values()))
sim_info = sim_cfg.output.read_info()

nassu_commit = sim_info["commit"]
nassu_version = sim_info["version"]
print("Version:", nassu_version)
print("Commit hash:", nassu_commit)

Version: 1.6.40
Commit hash: 28b8f29fdb579d5b24b3c2a7def67eb856e889e0

Configuration#

from IPython.display import Code

Code(filename=filename)
